Description

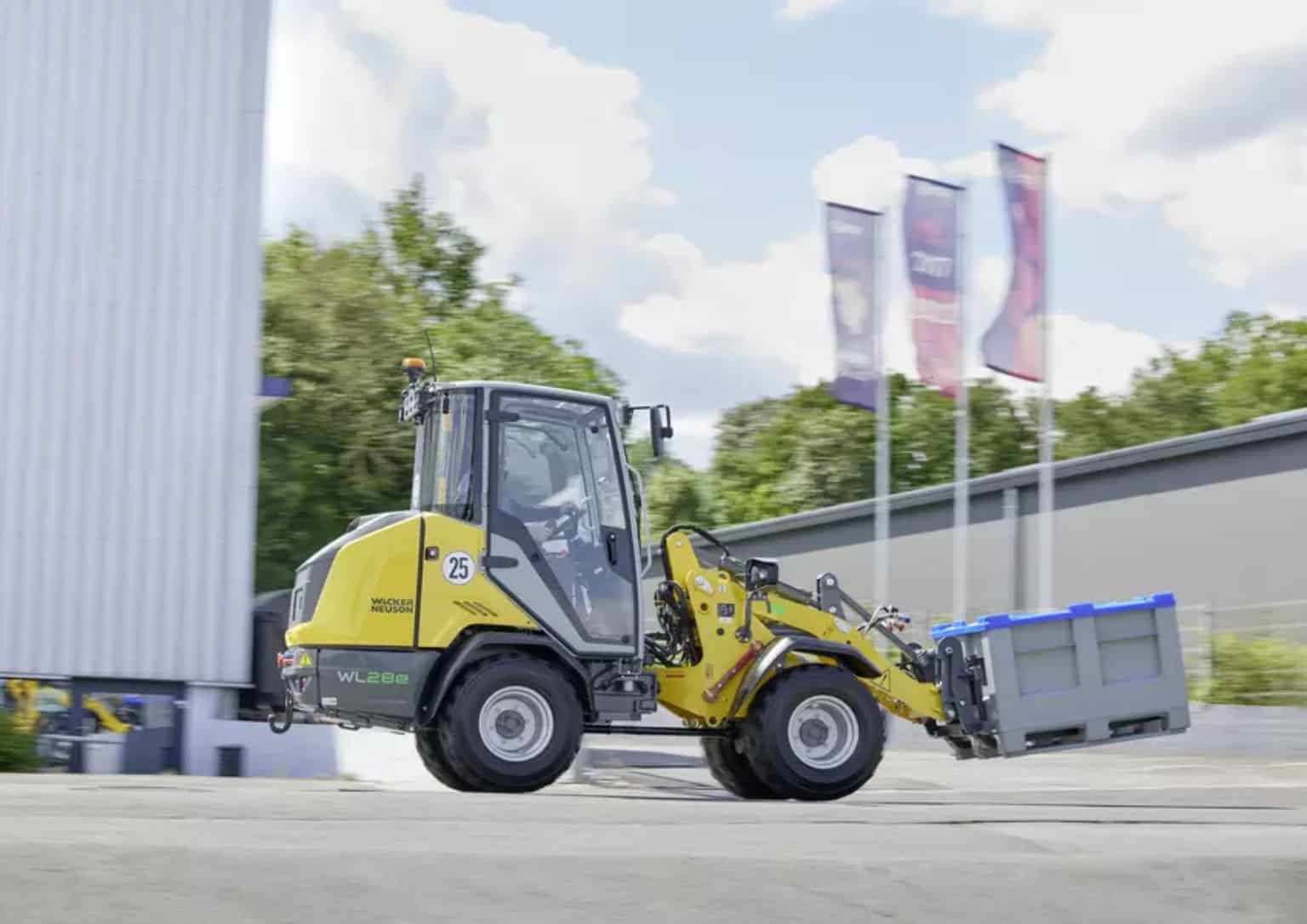

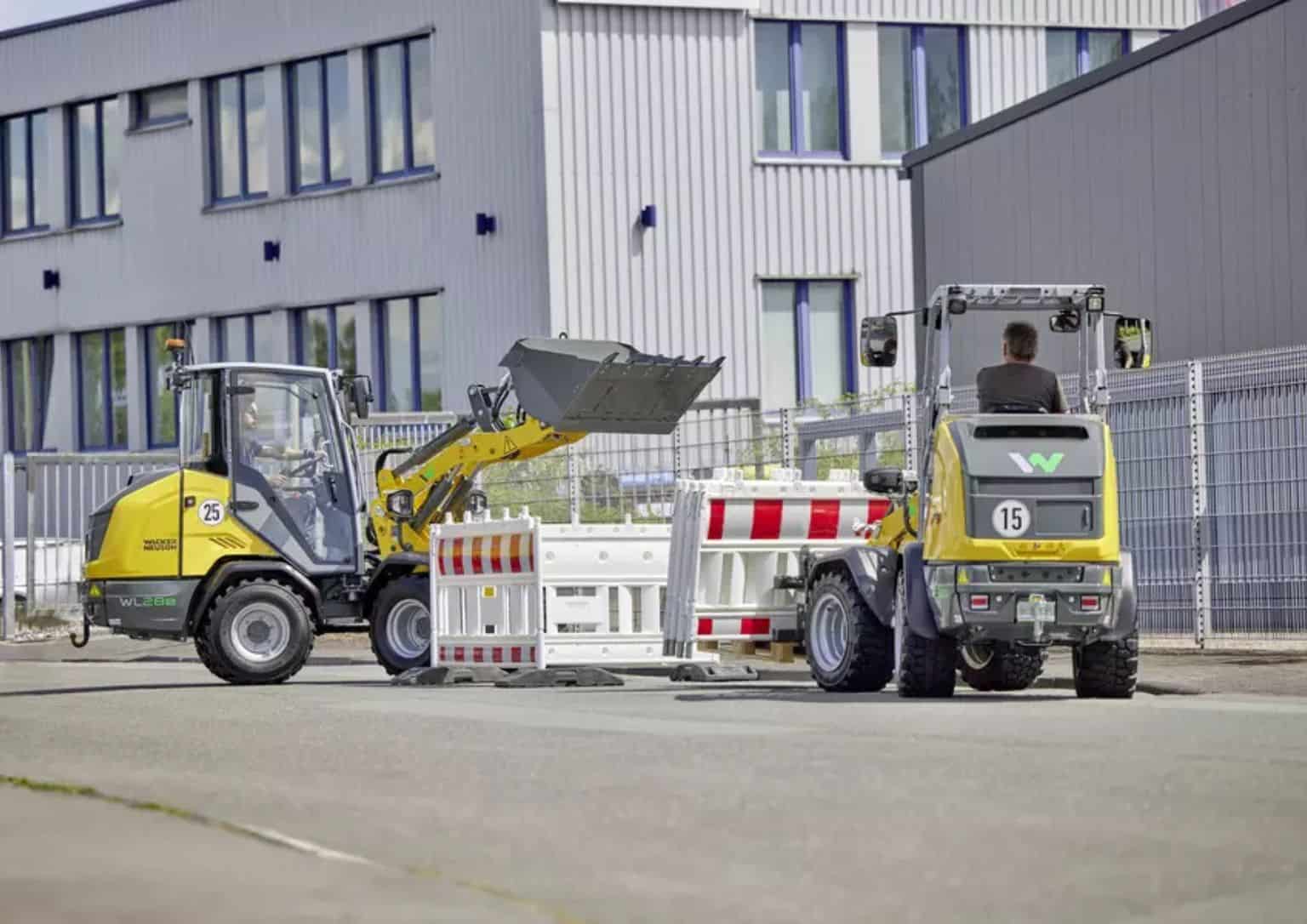

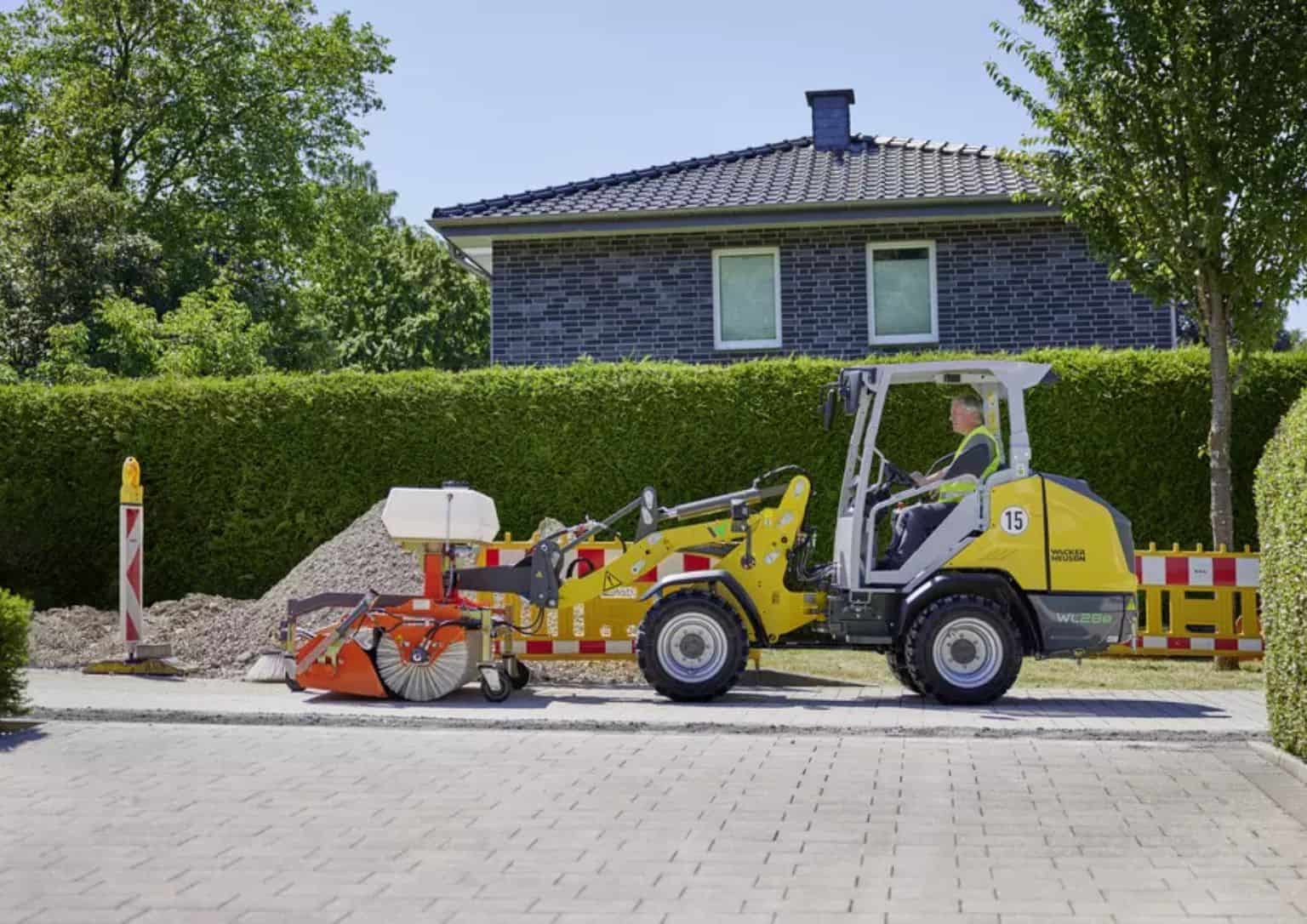

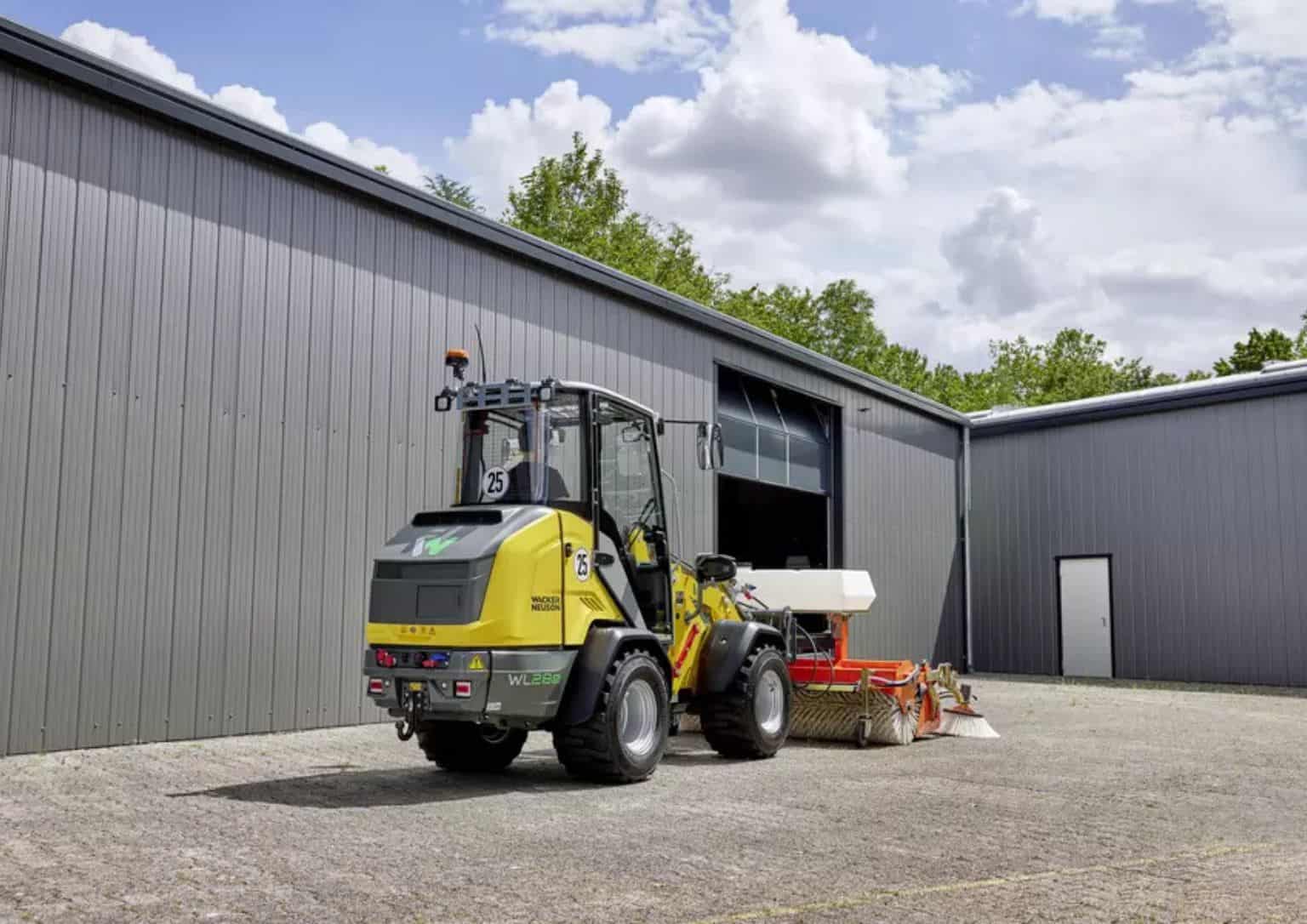

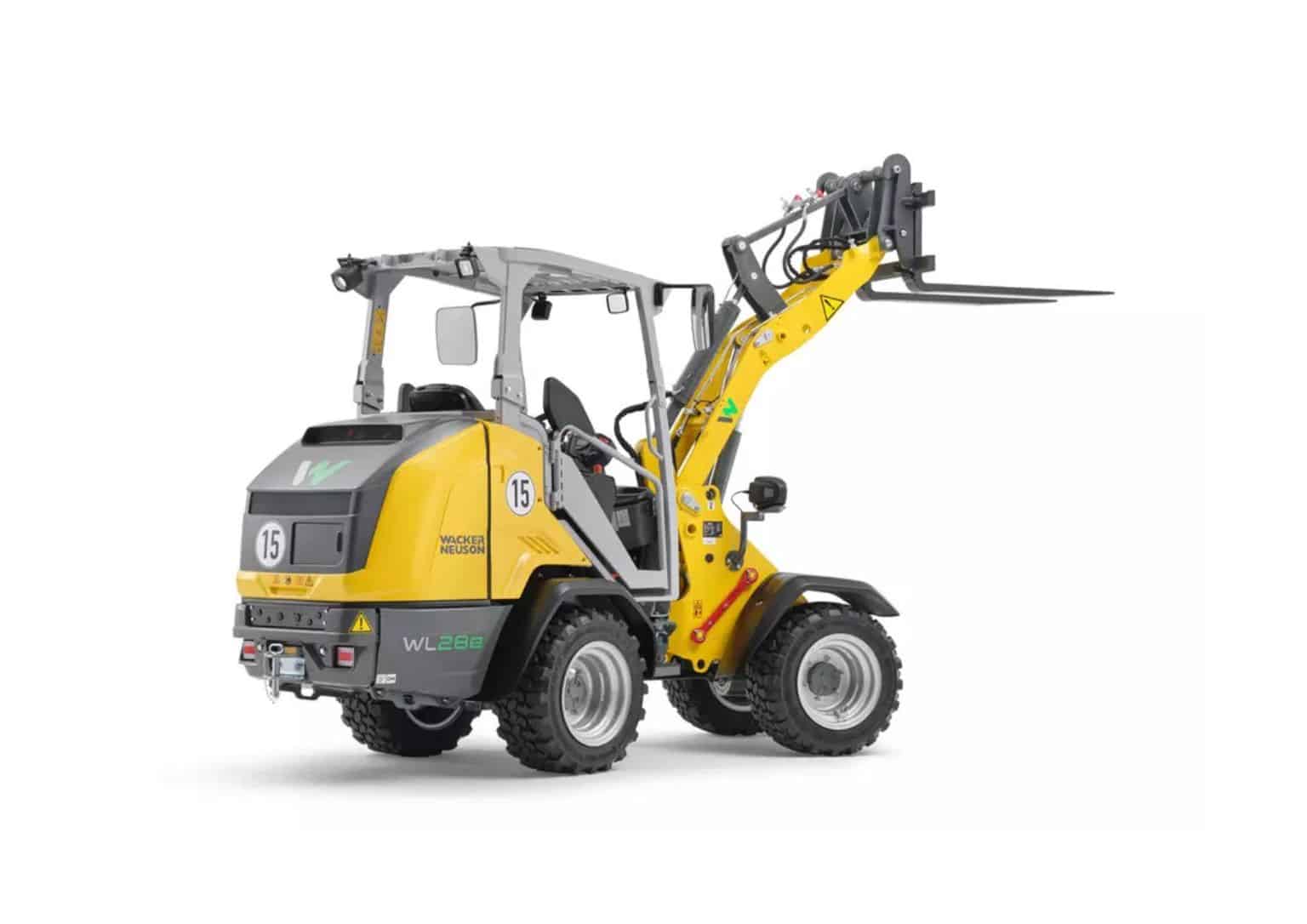

The Wacker Neuson WL28e Wheel Loader Features –
Powerful lithium-ion battery
- It is always possible to select the appropriate battery size depending on the area and purpose of application. There is a total of three maintenance-free lithium-ion batteries to choose from: As standard there is the 14.1 kWh, optionally available there are 18 kWh or 28 kWh.
- A 3 kW onboard charger is installed as standard. Optionally, a second 3 kW onboard charger can be selected to increase the charging power up to a total of 6 kW, which is suitable for the medium and large battery to achieve a fast charging time.
Easy charging options
- The charging cover can be accessed easily from the outside on the machine. Behind it you will find the socket, the activation switch, and the charge display.
- The charging cable (Type 2 plug on the machine, familiar from the automotive industry), including the control box, is available with a number of different plugs: 230 V / 10 A Schuko, 230 V / 16 A CEE (blue, 3-pole), 400 V / 16 A CEE (red, three-phase AC current, 5-pole), 400 V / 16 A (Type 2 plug wall box, IEC 62196), and other adapter plugs.
- The flexible, selectable charging plugs enable fast and coordinated charging of the selected battery size. In combination with the installed on-board charger, both efficient and safe charging processes are guaranteed.
The Wacker Neuson WL28e Wheel Loader ensures high productivity thanks to the low front carriage
- The low front carriage makes high tipping loads and break out forces possible; this way, the maximum load per work cycle can be moved.
- The low front carriage provides for an outstanding overview of the attachment, the immediate work area and the entire surroundings of the machine, which guarantees safe working with the machine.
- The auxiliary hydraulics at the front on the load arm are protected by piping (3rd control circuit, 4th control circuit, overflow line, unpressurized return line, depending on the model). That is a unique selling point in the compact wheel loader class. Wear and tear is minimized and, as a result, the service life of the machine is increased.
Comfort cab
- The comfort cabin enables safe and concentrated working: 4-pillar design, deep-drawn windows, and a panoramic windshield for optimal all-round visibility. The thought-out heating design with electrically heated front and rear windshields, heated seats, as well as roof panel heating ensure for a comfortable working climate. Ergonomically organized operating elements, new interior, and reduced vibrations and noises in the interior increase the operator’s comfort.
- The spatial provision within the cabin is pioneering among the very compact wheel loaders. Depending on equipment and configuration, there are two different joysticks available. The Coming-Home lighting provides additional comfort and safety.
- The cab is also suitable for taller operators, which isn’t always the case for very compact wheel loaders. The pleasant working climate reduces operator fatigue. The optimized access with non-slip steps ensures that the operator can get in and out safely.
Easy-to-read digital display
- The main functions in the Wacker Neuson WL28e Wheel Loader are always in sight: With the digital display, the operator always has everything in sight while working.
- On the outside of the display are the standard indications, like the warning light for the parking brake or the control lights for the indicator or the full beam.
- In the central area of the display for information there are three main views and a variety of useful information, e.g. operating hour meter, charge status of the drive battery, remaining running time / remaining charge time, speed display, average consumption, recuperation level, date, time, or temperature of different components.
